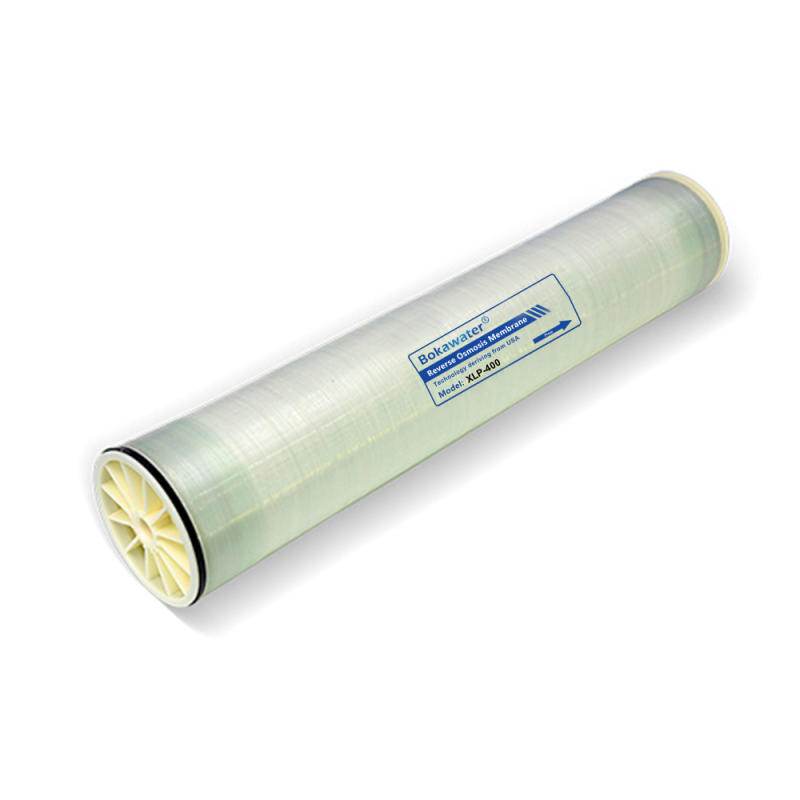

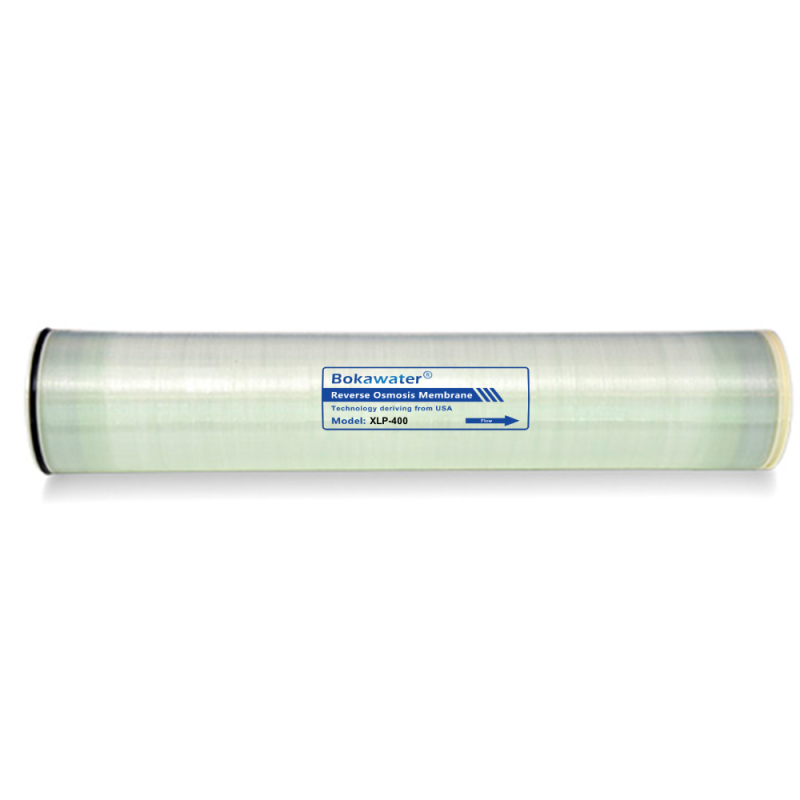

XLP-400 Membrane
Product Introduction
The Extra Low Pressure membrane elements are designed for desalination of feedwater with salt concentration below 1,500 mg/L. This series features high salt rejection, low operating pressure, and high flux, making it ideal for desalination projects using municipal tap water or groundwater as feedwater. Applications include residential drinking water systems and process water for food & beverage industries.
Product Specifications and Performance Parameters
|
Model |
Stable Salt Rejection Rate |
Minimum Salt Rejection Rate |
Permeate Flow |
Effective Membrane Area |
Feed Spacer |
Test Solution Concentration |
Test Pressure |
|||
|
% |
% |
GPD |
m³/d |
ft2 |
m2 |
mil |
mg/L |
psi |
MPa |
|
| XLP-400 |
|
|
|
|
|
|
|
|
|
|
Test Conditions ：NaCl aqueous solution, temperature 25 ℃, pH value 7.5–8.0, recovery rate 15%; permeate flow variation range ±15%.
Operating Conditions
|
Maximum Operating Pressure |
600 psi (4.14 MPa) |
|
Maximum Feed Water Temperature |
45 ℃ |
|
Maximum Feed Flow Rate |
17.0 m3/h (8040)、3.6 m3/h (4040) |
|
Maximum Feed Water SDI15 |
5.0 |
|
Free Chlorine Tolerance |
0.1 mg/L |
|
Operating pH Range (Continuous Operation) |
2-11 |
|
Cleaning pH Range (30 minutes max) |
1-13 |
|
Maximum Allowable Pressure Drop per Element |
15 psi (0.10 MPa) |
